Muller Motor project updates
Here are a few photos of the assembly so far along with scans of the schematic and board layout for the driver circuit. Click each image for a closeup look. Please be mindful that this is a work in progress. As such, what you see here may not always be up-to-the-minute. Keeping this web site up to date takes time. I will get to it when I can. Here also is a direct link to my YouTube Muller Motor Playlist. It's all there.
Related goods & svcs

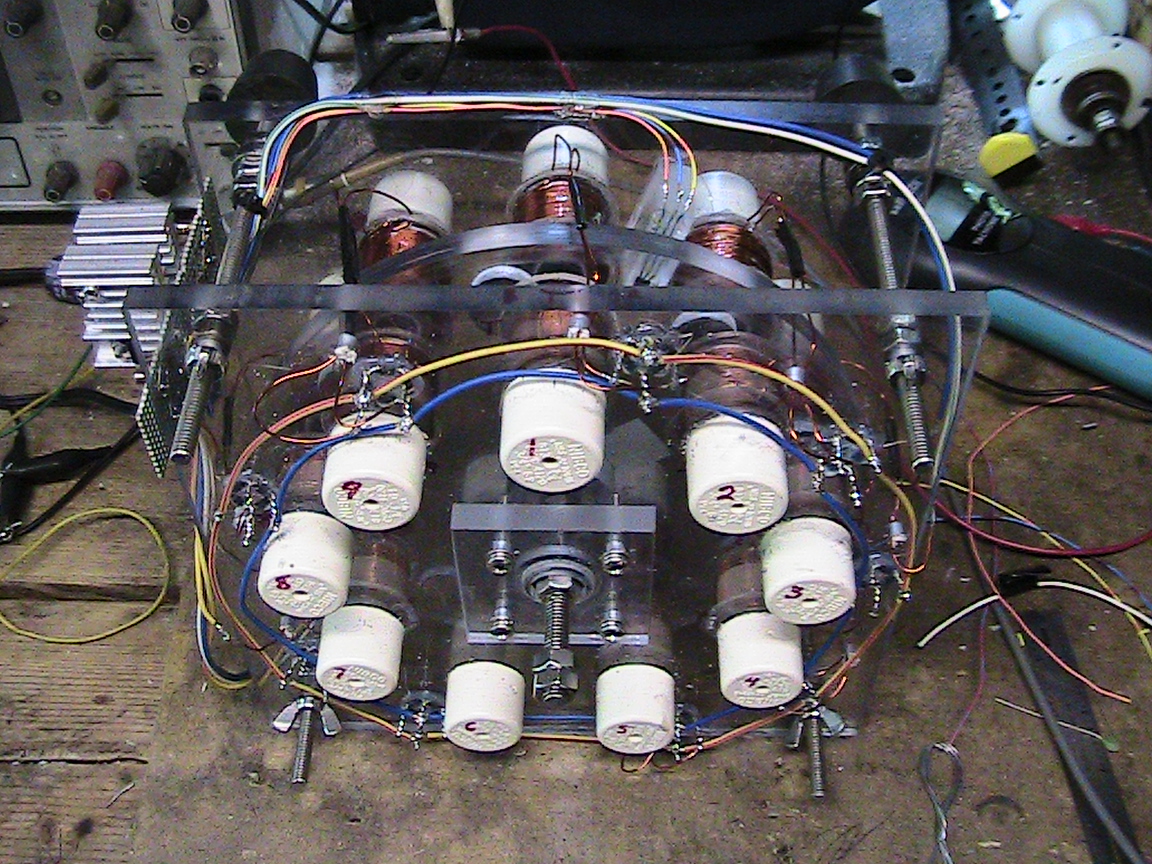

Overall View
Muller Motor overall view

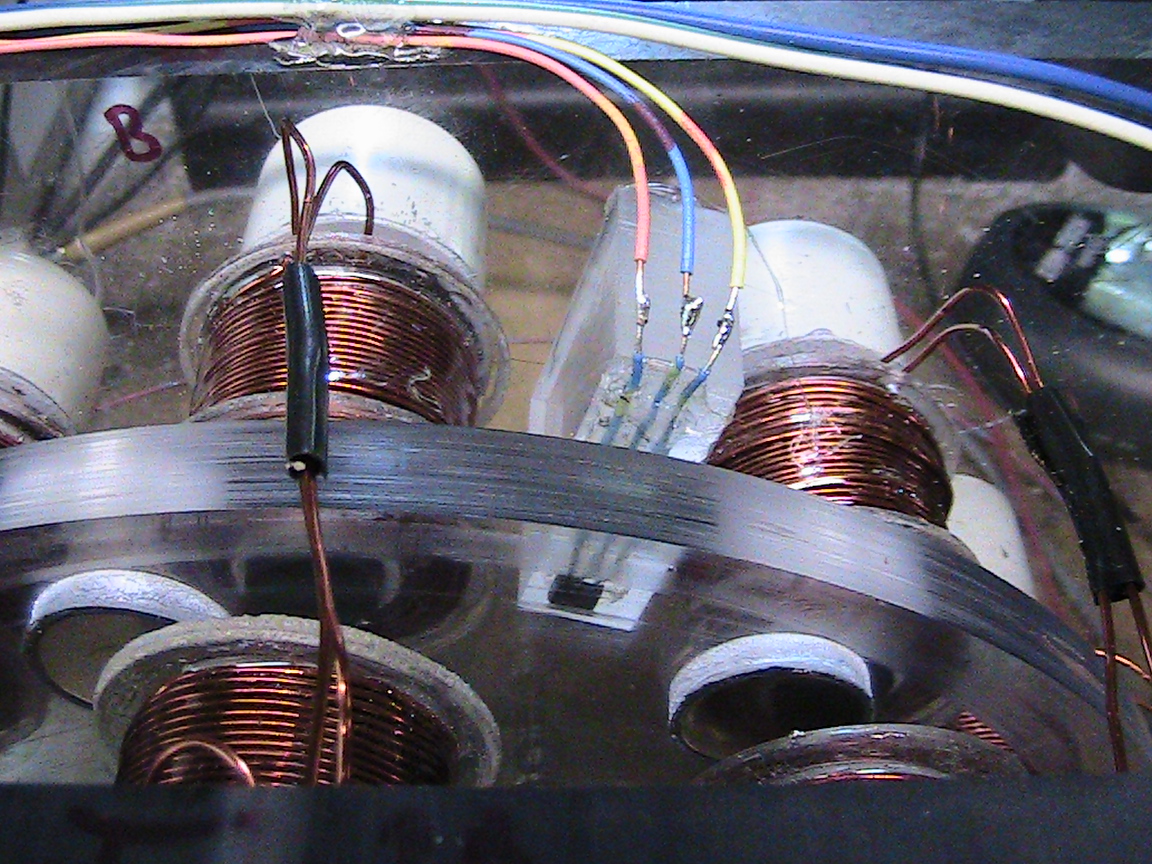

Hall effect sensor closeup
Muller Motor hall effect sensor closeup
Please visit my sponsors

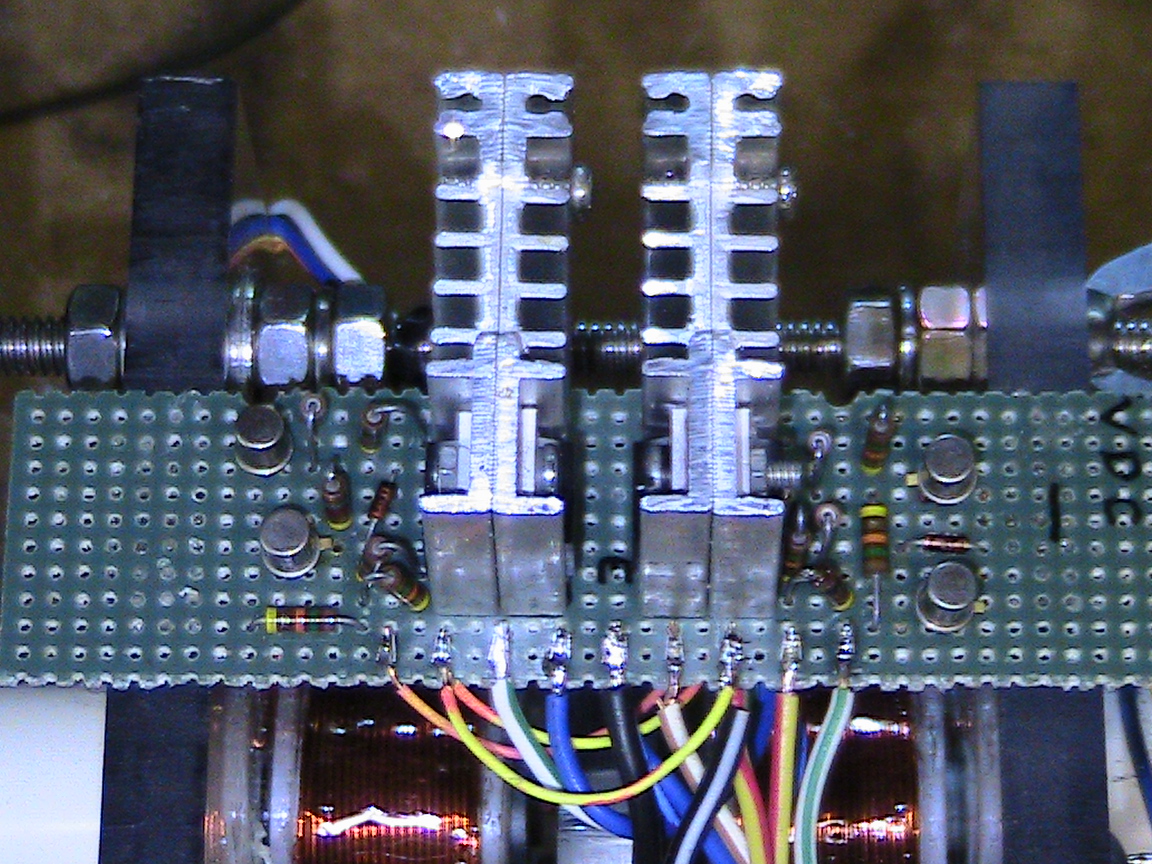

Driver board
Muller Motor driver board

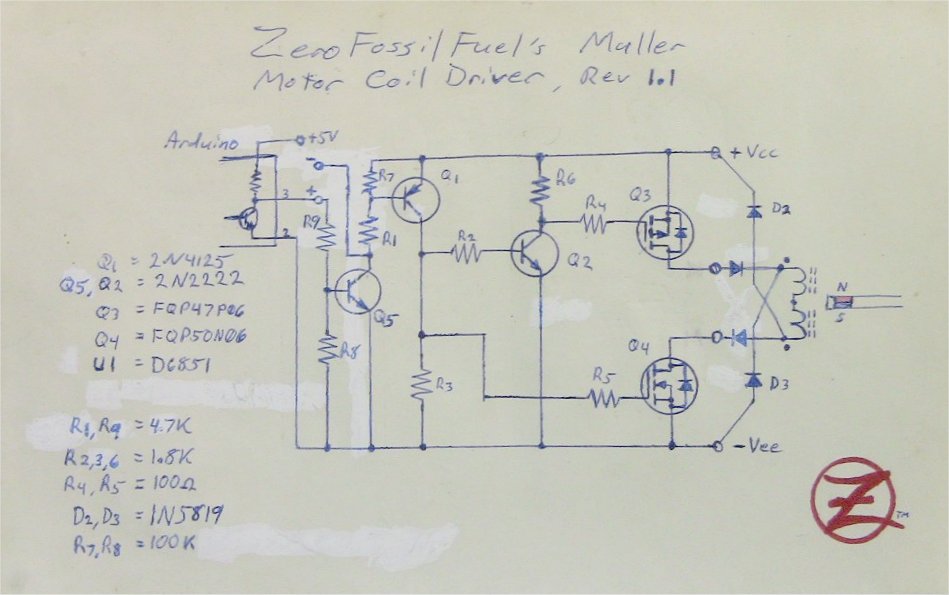

Schematic diagram v1.1
Muller Motor driver schematic diagram

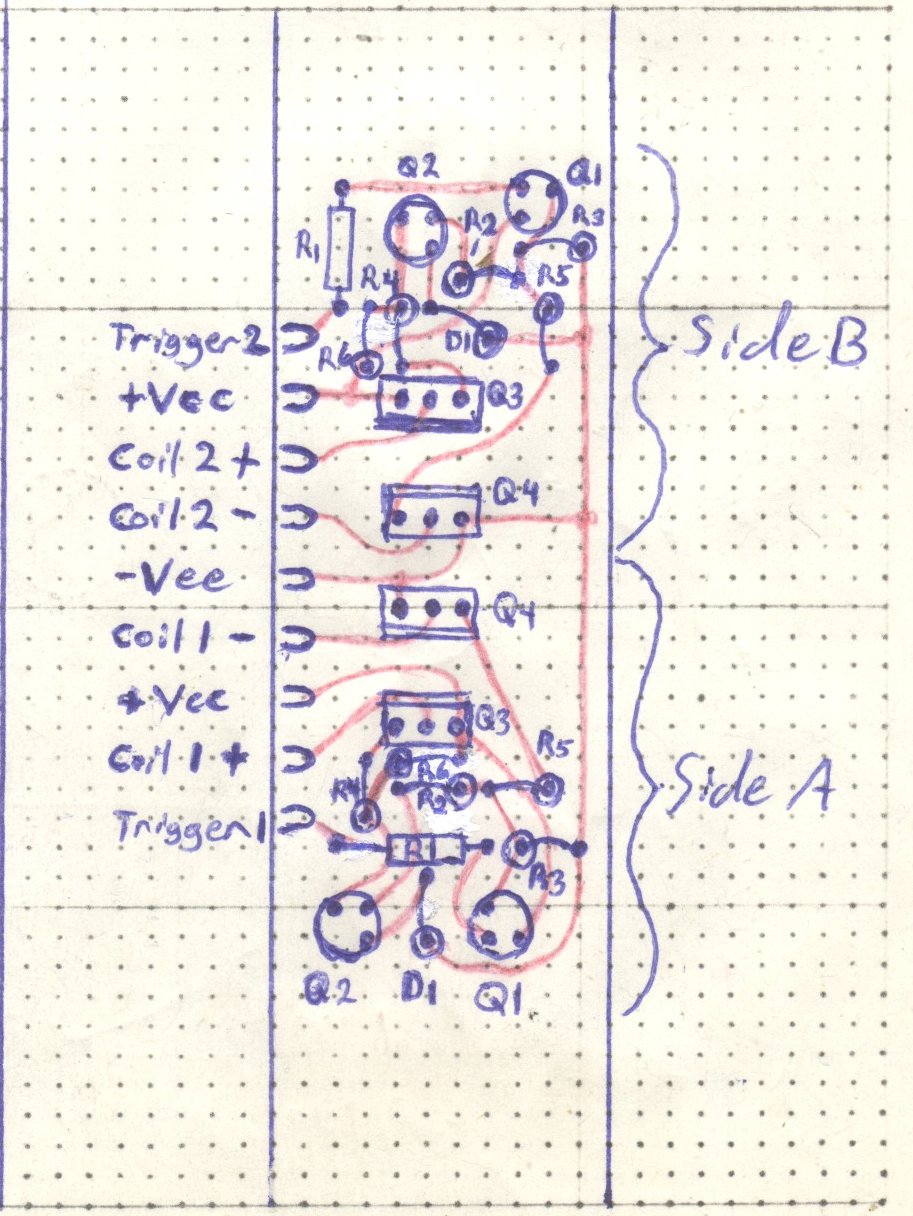

Board layout v1.0
Muller Motor driver board layout

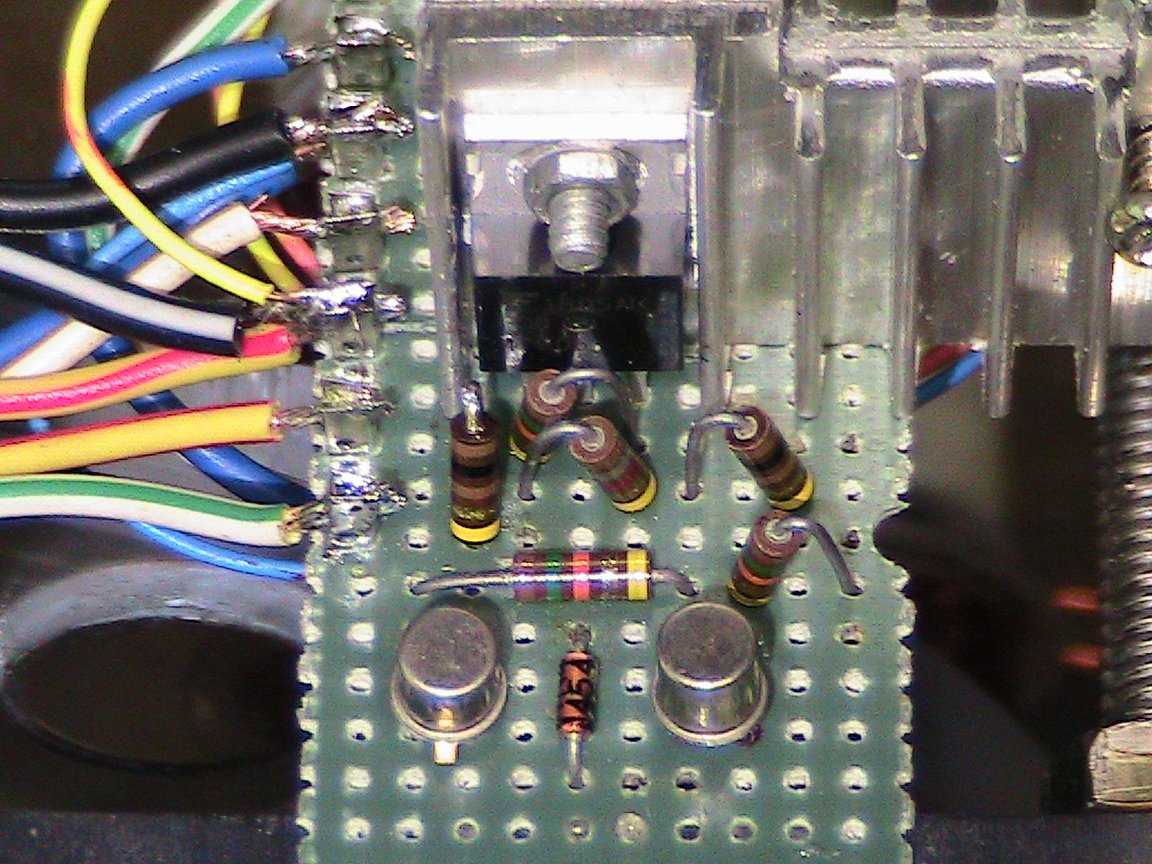

Driver board closeup v1.0
Muller Motor driver board closeup

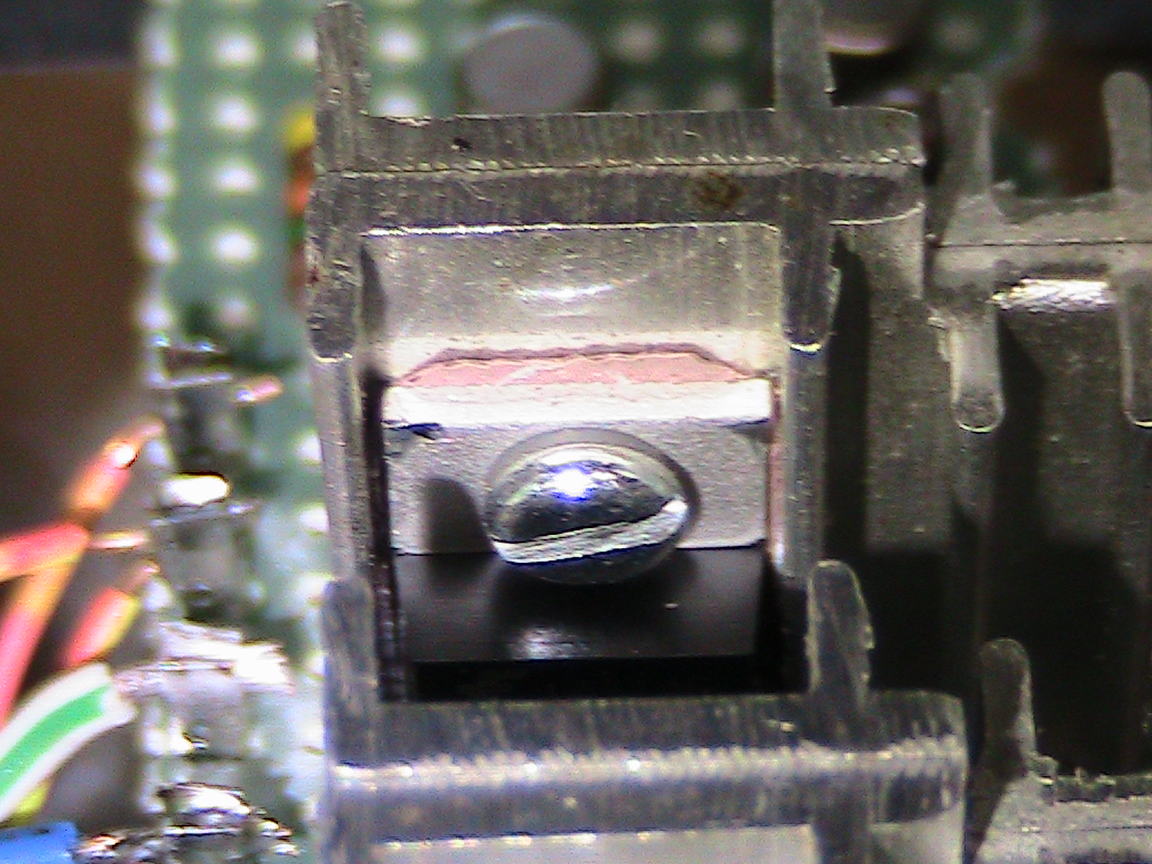

Heat sink insulator detail
Muller Motor driver heatsink insulator detail
Arduino sketch download!

This is my first public release of the Arduino sketch created for us by Hydrtec. Enjoy!

To download, right-click then Save As. This program is provided AS-IS, released free of charge under the terms of the GNU GPLv3 free software license. It is supplied without any warranty, expressed or implied. Under no circumstance shall ZeroFossilFuel, Hydrtec or any one else associated with this program be liable for any damages, direct or indirect, resulting from the use of this program. By downloading this program you signify your consent to the terms of GPLv3 in its entirety and agree to be bound by them.

freq_counter_v1_3.zip

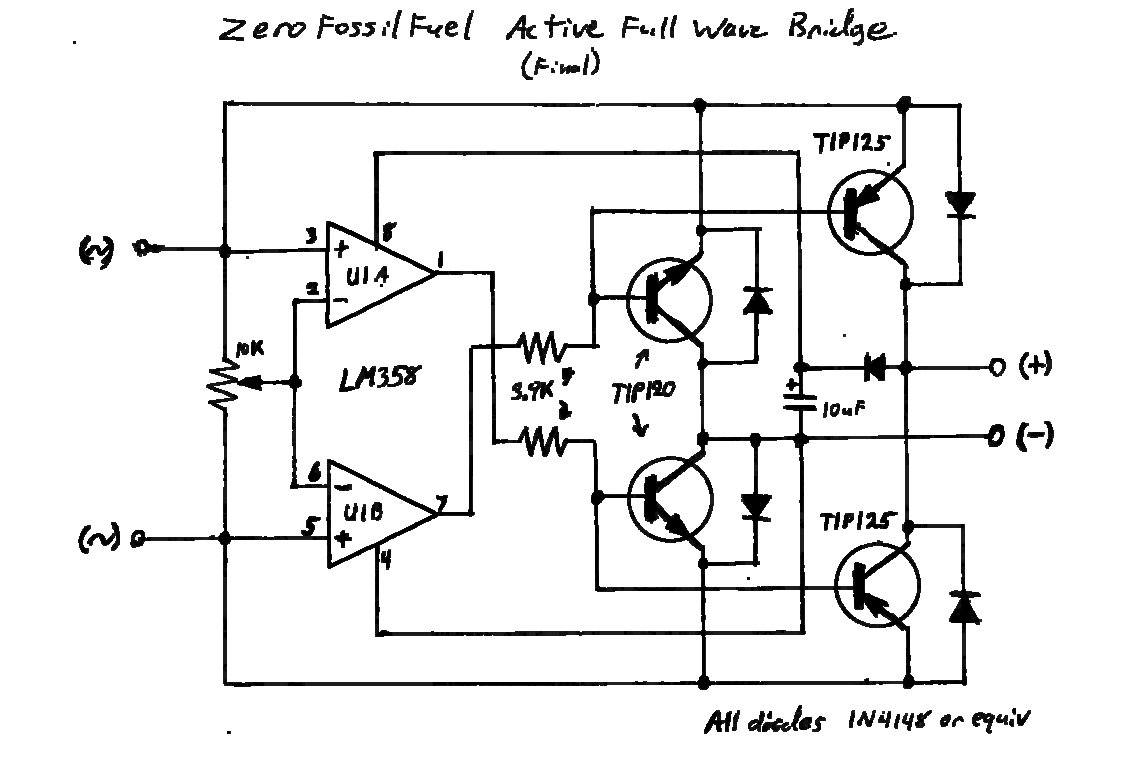

Active FWB (final)
Muller Motor driver board closeup
Click to enlarge



Here are the spreadsheets of raw data collected so far on this motor...

Spreadsheet #1 started 8/16/11
Spreadsheet #2 started 8/30/11
Magnet selection spreadsheet


selfrunning_free_energy_device_muller_motor_generator_romerouk_version1_1.pdf


People have been asking where to find this. Above is the copy of the pdf with construction details created by Stephan Hartmann
for http://www.overunity.com/index.php?topic=3842. To save, right click the link and click "Save link as". Below are the sources I used for the parts in my build

Magnets from Applied Magnets (Now no longer stocked???)
Magnet wire from Planet Engineers (also available from Applied less/ft but only in full 11lb spools)
Schottky diodes (1N5819) off ebay from Mad Scientist Supply
96mm x 12mm ferrite cores off ebay from Anonalouise (Sold out within a week of my posting this link. Sorry.)
5' length of 1/2" PEX pipe for bobbins locally from Home Depot
3/32" acrylic for bobbins also from Home depot
SS hardware, Goop Marine adhesive, etc locally from ACE Hardware and/or Sears Hardware
DC/DC switching supply I had laying around.
7/8" O.D. x 5/16" I.D. ball bearings I also had in my parts drawers.
Transistors, resistors & perf board I have parts drawers full of. Can be had from Radio Shack or by mail order.
      I use Mouser a lot. There's also DigiKey, Newark, etc.


Here are backup copies of the 3 original RomeroUK videos:
:
http://www.youtube.com/watch?v=8KVU3ZM14rw
http://www.youtube.com/watch?v=o3YqCp84IOE
3rd video with the generator suspended.
http://www.youtube.com/watch?v=jzO0-p0NF7E
